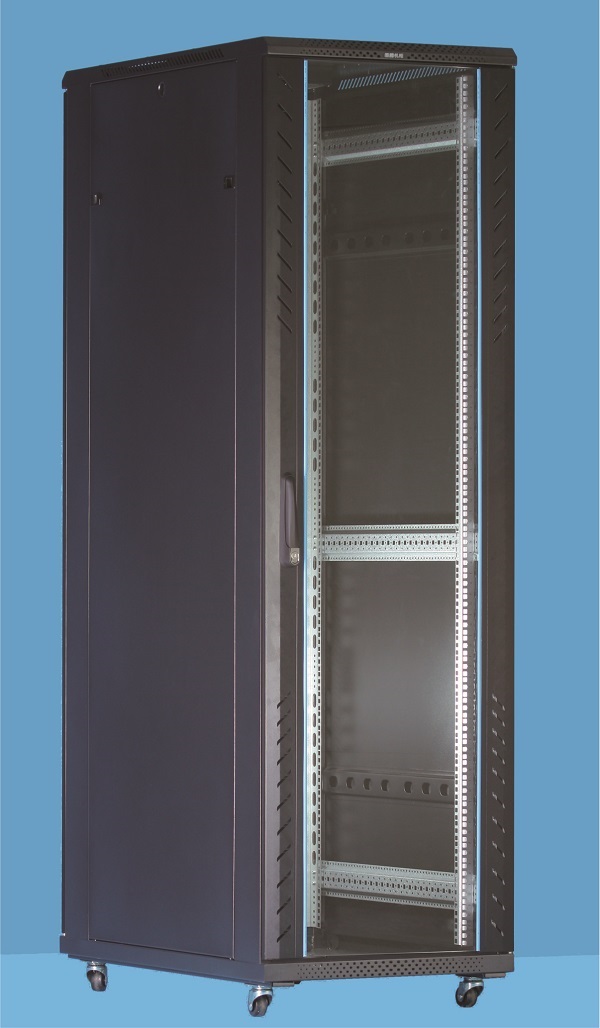

G2 Server/ Network Cabinet

Standards:
Comply with ANSI/EIA RS-310-D、IEC297-2、DIN41494;PART1、DIN41494;PART7, ETSI standard.

Feautures:
Exquisite design with precise dimension and craftsmanship;
Steel front & rear door without hole;
Adjustable feet and heavy duty castors are available at the same time;
Several lockable cable entry on top cover and bottom panel with adjustable sizes;
Optional plinth enables cabinet to stay in a fixed position, meeting requirements of under-base cable entry/ventilation and prevention;
Efficient cabinet baying kit(patent);
Removable side panels, easy to install and maintain;
Around 1/2~2/3 of original assembled volume when flat pack.

Main material:
SPCC cold rolled steel;
●Thickness: mounting profile 2.0mm, mounting angle 1.5mm, others 1.2mm.

Surface finish:
Degreasing, pickling, phosphoric, powder coated;

Degree of protection:
IP20

Loading capacity:
Static loading: 800KG


Specification

Model No.

Capacity ( U )

Width
(mm)

Depth
(mm)

Height
(mm)

Packing Dimension
W*D*H

Volume
(CBM)

G2.6618.70■■

18

600

600

988

670*670*1028

0.5992

G2.6818.70■■

800

670*870*1028

0.5992

G2.6018.70■■

1000

670*1070*1028

0.7370

G2.6622.70■■

22

600

600

1166

670*670*1196

0.5369

G2.6822.70■■

800

670*870*1196

0.6971

G2.6022.70■■

1000

670*1070*1196

0.8574

G2.6627.70■■

27

600

600

1388

670*670*1418

0.6460

G2.6827.70■■

800

670*870*1418

0.8266

G2.6027.70■■

1000

670*1070*1418

1.0166

G2.6632.70■■

32

600

600

1610

670*670*1640

0.7362

G2.6832.70■■

800

670*870*1640

0.9560

G2.6032.70■■

1000

670*1070*1640

1.1757

G2.6637.70■■

37

600

600

1833

670*670*1863

0.8363

G2.6837.70■■

800

670*870*1863

1.0859

G2.6037.70■■

1000

670*1070*1863

1.3356

G2.6237.70■■

1200

670*1270*1863

1.5852

G2.6642.70■■

42

600

600

2055

670*670*2085

0.9360

G2.6842.70■■

800

670*870*2085

1.2153

G2.6042.70■■

1000

670*1070*2085

1.4947

G2.6242.70■■

1200

670*1270*2085

1.7741

G2.8642.70■■

800

600

870*670*2085

1.2513

G2.8842.70■■

800

870*870*2085

1.5781

G2.8042.70■■

1000

870*1070*2085

1.9409

G2.8242.70■■

1200

870*1270*2085

2.3037

G2.6647.70■■

47

600

600

2277

670*670*2307

1.0356

G2.6847.70■■

800

670*870*2307

1.3448

G2.6047.70■■

1000

670*1070*2307

1.6539

G2.6247.70■■

1200

670*1270*2307

1.9630

Definition of Color:

■■.■■■■.■■00

■■.■■■■.■■01

gray

black

RAL7035

RAL9004

Color

RAL9004

RAL7035

Black

Gray




Definition of ornament strip color:

G2.■■■■. 7■■■

G2.■■■■. 9■■■

Light Red

Light blue
